High-level API

Controlling devices using Lua is a core concept when using computers. Many devices are so-called high-level API (HLAPI) devices. This means they are not controlled using regular Linux drivers, but via a simple RPC system, employing JSON messages over a serial device.

Everything in this entry needs the Linux system that ships for the RISC-V processor. To access devices from a Z80 processor, see the mid-level API (MLAPI) entry.

For the methods available on devices, see the list of devices.

The default Linux distribution includes libraries to make HLAPI devices more easily accessible. The devices library provides utilities for discovering devices and calling methods on them, as well as obtaining documentation on devices, when available.

Note: this document will use Lua to provide an overview, examples and API documentation. An equivalent library with API parity is also available for micropython.

To use the devices library, import it using require("devices"). What you get back is an object, so its methods are called with colon notation: store it in a variable, then call d:list() rather than d.list().

list():table returns a list of all currently available devices. Each entry in the returned table represents a single device, including its type names and unique identifier.

get(id:string):Device returns a wrapper for a device with the specified identifier. This is similar to find but takes a specific identifier instead of a type name.

find(typeName:string):Device returns a wrapper for a device of the specified type. If there are many devices of this type, it is undefined which one will be returned. Aliases set in Bus Interfaces may also be used.

methods(id:string):table returns the list of methods offered by the device with the specified identifier. To obtain the list of methods in a more readable way, get the device wrapper and convert it to a string, instead. Also see the section on the device wrapper type.

invoke(id:string, methodName:string, ...):any calls the method with the specified name on the device with the specified identifier. Passes along any extra parameters. Using this method directly is not recommended. Prefer obtaining a device wrapper and invoking the method through it. Also see the section on the device wrapper type.

waitEvent(timeout:number, eventType:string):table waits for the next event sent by a device, such as a robot finishing an action.

blob(data:string):Blob wraps binary data so that it may be passed to a device method. Parameters are otherwise sent as text, which would corrupt anything that is not.

Devices returned from the devices library are objects of type Device. This is a wrapper storing the device identifier.

Its main purpose is to enable seamless invocation of methods exposed by this device, as well as a convenient way to access documentation, if available.

To invoke a method on such a wrapper, use colon notation, and the method's name. For example:

wrapper:waitEvent(timeout:number, eventType:string):table works like waitEvent on the library, but only returns events sent by this device. Events from other devices are discarded while waiting.

To obtain the documentation of the device, tostring it. In the Lua interpreter, use =wrapper.

The serial devices used for the RPC system can only be opened by one program at a time. A small background service, oc2busd, opens them once when the computer boots and relays messages for everything else. While it's running, as many scripts as you like can use the devices library at the same time.

Calls are still carried out one at a time, in the order they arrive, so two scripts controlling the same device will not interleave halfway through an operation.

Events, such as a robot finishing an action, are delivered to every listening script. A script that starts in the middle of an action may therefore see events for something it did not begin, so check that an event refers to the action you are waiting on. waitEvent takes an event name for early filtering.

Each require("devices") gives a script one connection to the service. To hold more than one at the same time, for example to keep a long-running call from holding up everything else, open further ones explicitly:

Close such a connection with bus:close() once it is no longer needed. The one behind require("devices") is best left alone, since everything else in the script shares it.

If the service is not running, the devices library falls back to opening the serial devices directly. Everything keeps working, but only one program at a time can use it. The service writes to the system log, so cat /var/log/messages will say why it stopped.

For this example we will control a redstone interface block. First, place the block and connect it to the computer using bus cables and bus interfaces.

We place a redstone lamp on top of the redstone interface to have a visual indicator that our commands work.

To verify the connection between device and computer, run the command lsdev.lua from the command line. This lists the identifiers and type names of all connected HLAPI devices. One of these should have the type redstone among its type names.

Start Lua in interactive mode by running just lua from the command line.

Include the devices library and store it in a variable named d:

Then get the Device wrapper for the redstone interface block and store it in a variable named r:

The redstone in this call is the device type name, the same we checked for just earlier using lsdev.lua.

We now have a wrapper for the redstone interface block on which we may call methods. To get a list of the available methods, run =r.

For our example, we're interested in the setRedstoneOutput method. It allows setting the signal emitted from the redstone interface.

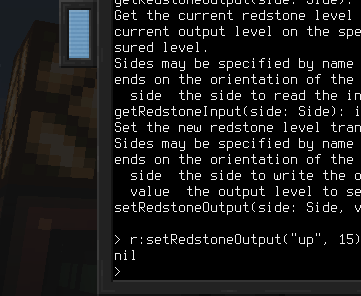

To light up our lamp, we want to emit a redstone signal from the top face of the redstone interface block:

The lamp should now light up!

With this, you have the tools to learn the names of connected devices, which methods they offer and how to obtain their documentation. Go ahead and experiment with the other methods of the redstone interface to read incoming redstone signals, or try out other devices!
